The Ellison Hotel

Photo courtesy of GSB, Inc. Architects & Planners

The Ellison Hotel honoring author Ralph Ellison in Oklahoma City features a wide range of steel building systems to create a culturally important space.

Photo courtesy of GSB, Inc. Architects & Planners

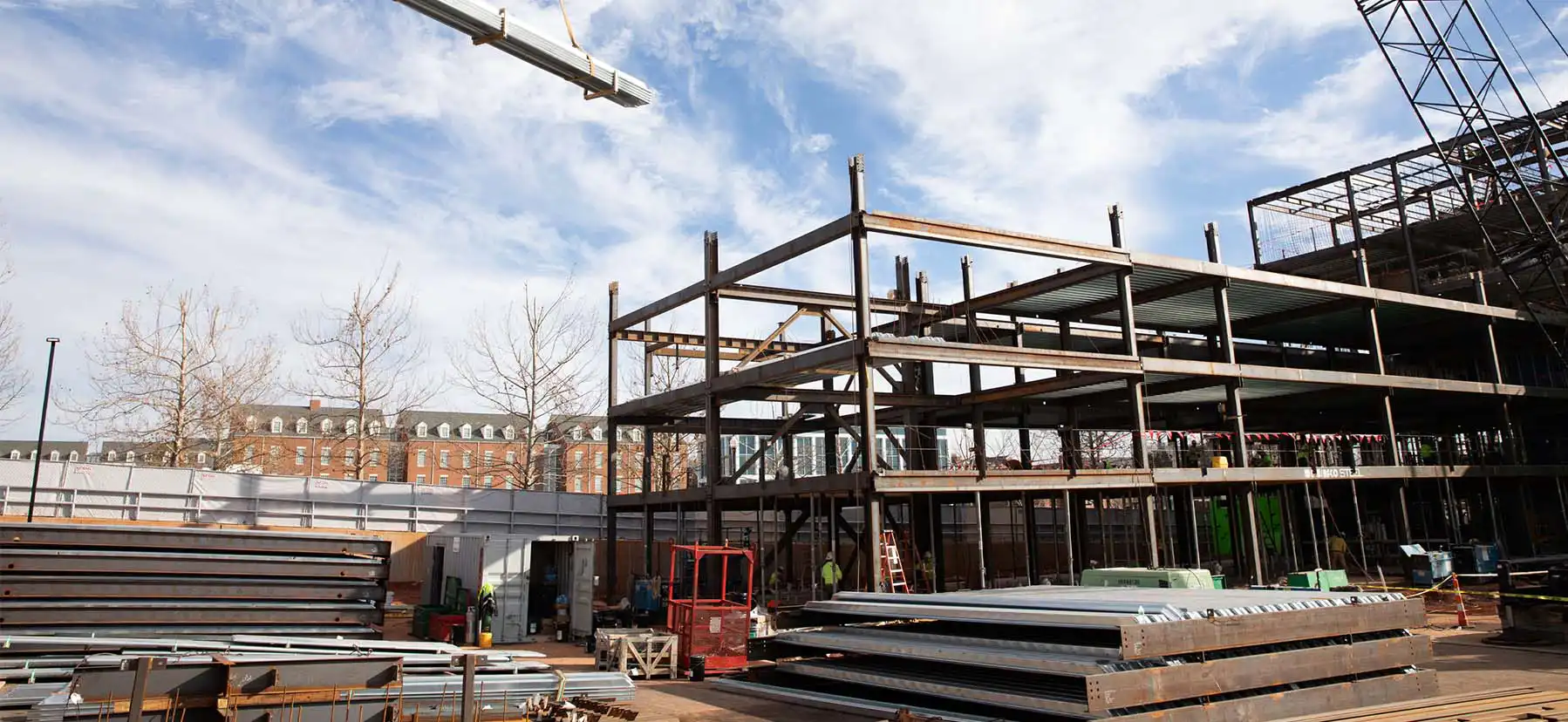

Using the Panelized Delivery Method™, Deep-Dek Composite 6.0 panels were first assembled on the ground, then crane-lifted onto the frame for the guest room floors.

Photo courtesy of GSB, Inc. Architects & Planners

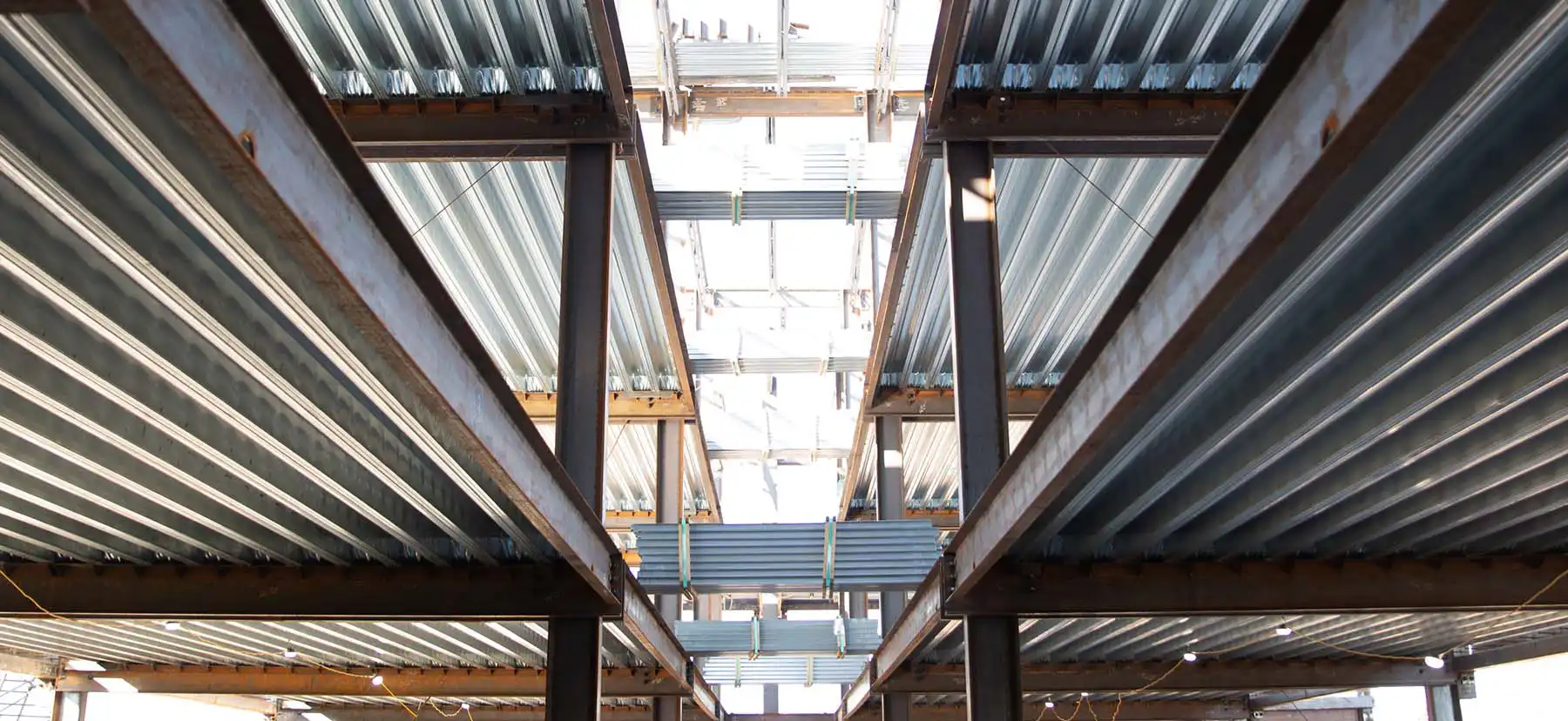

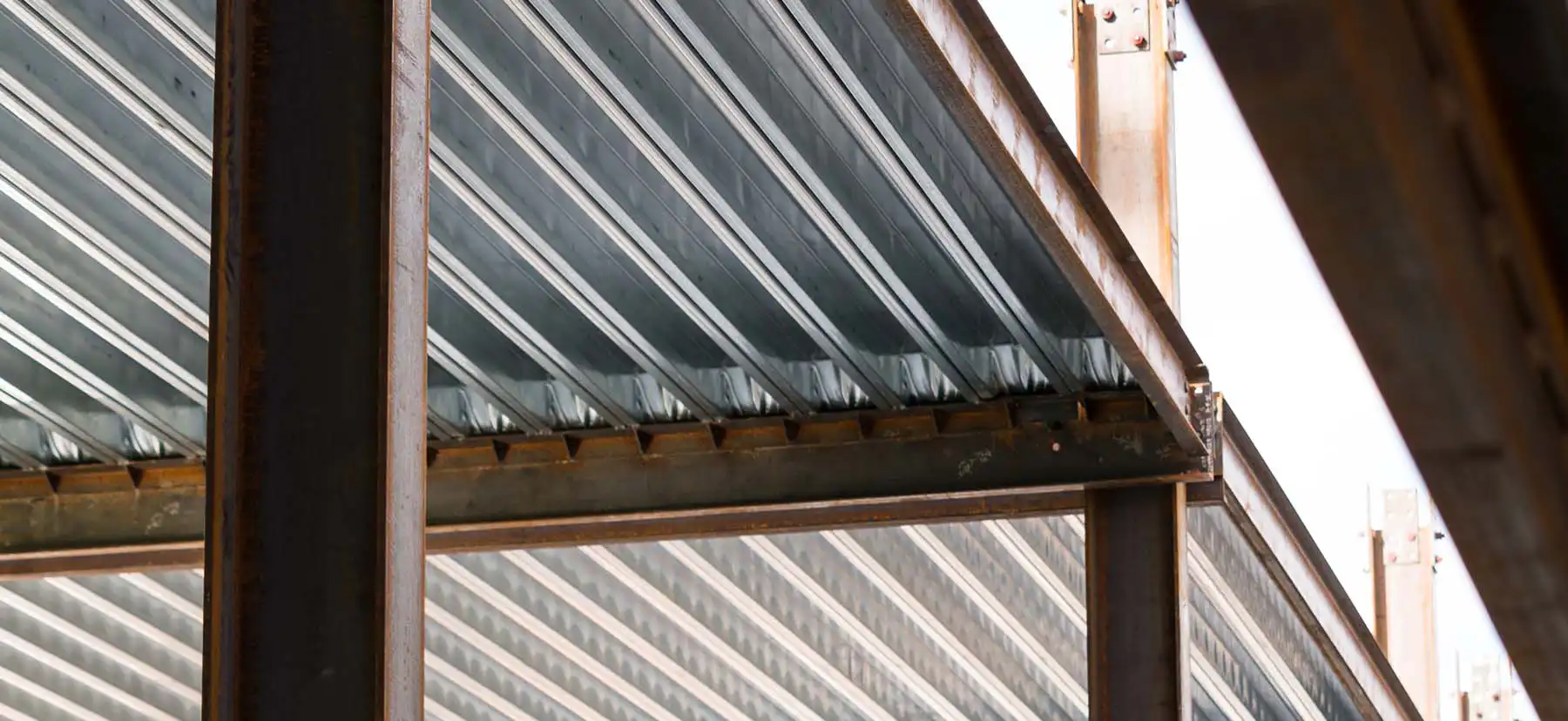

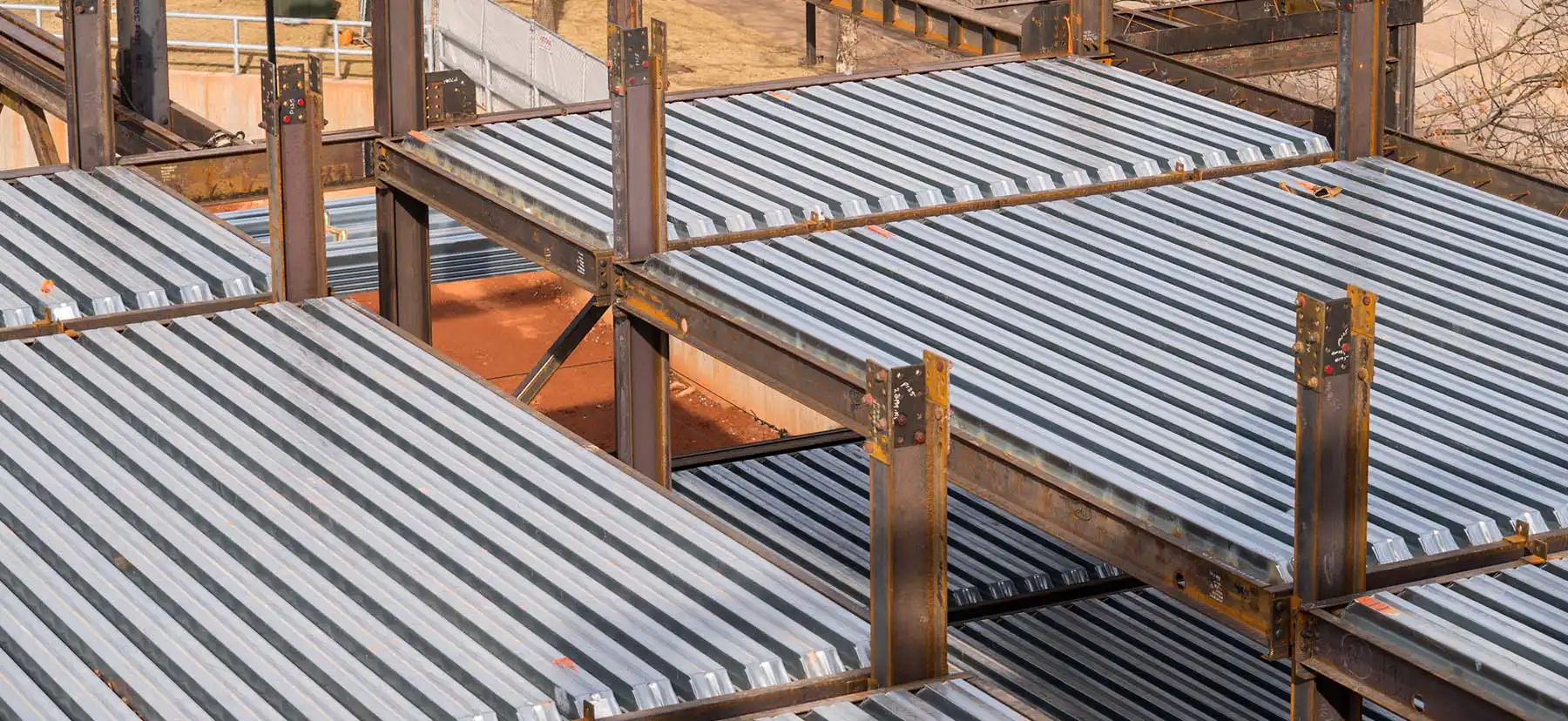

Once the frame was assembled, Deep-Dek Composite deck profiles, spanning the length of two hotel rooms, were fixed to the projecting leg of the ledger angle.

Photo courtesy of GSB, Inc. Architects & Planners

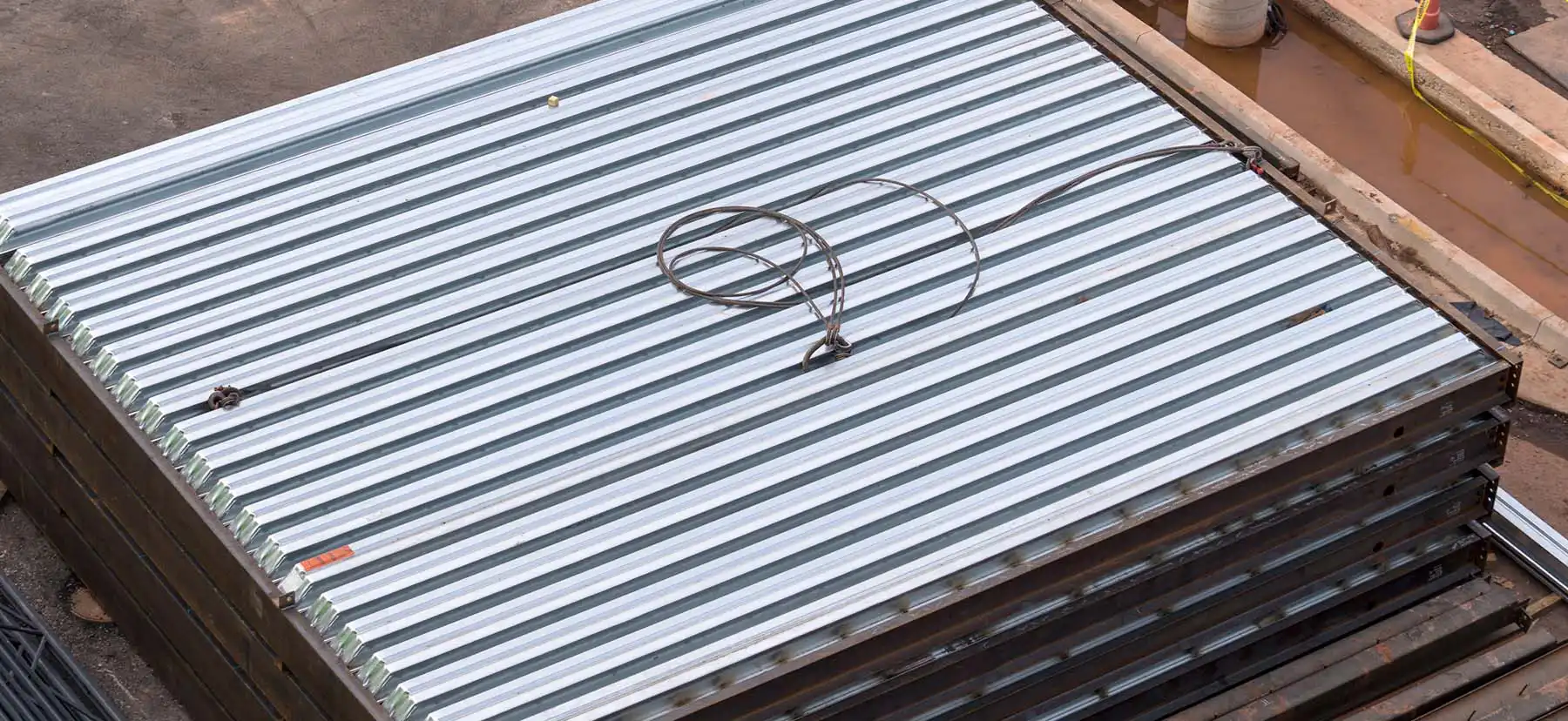

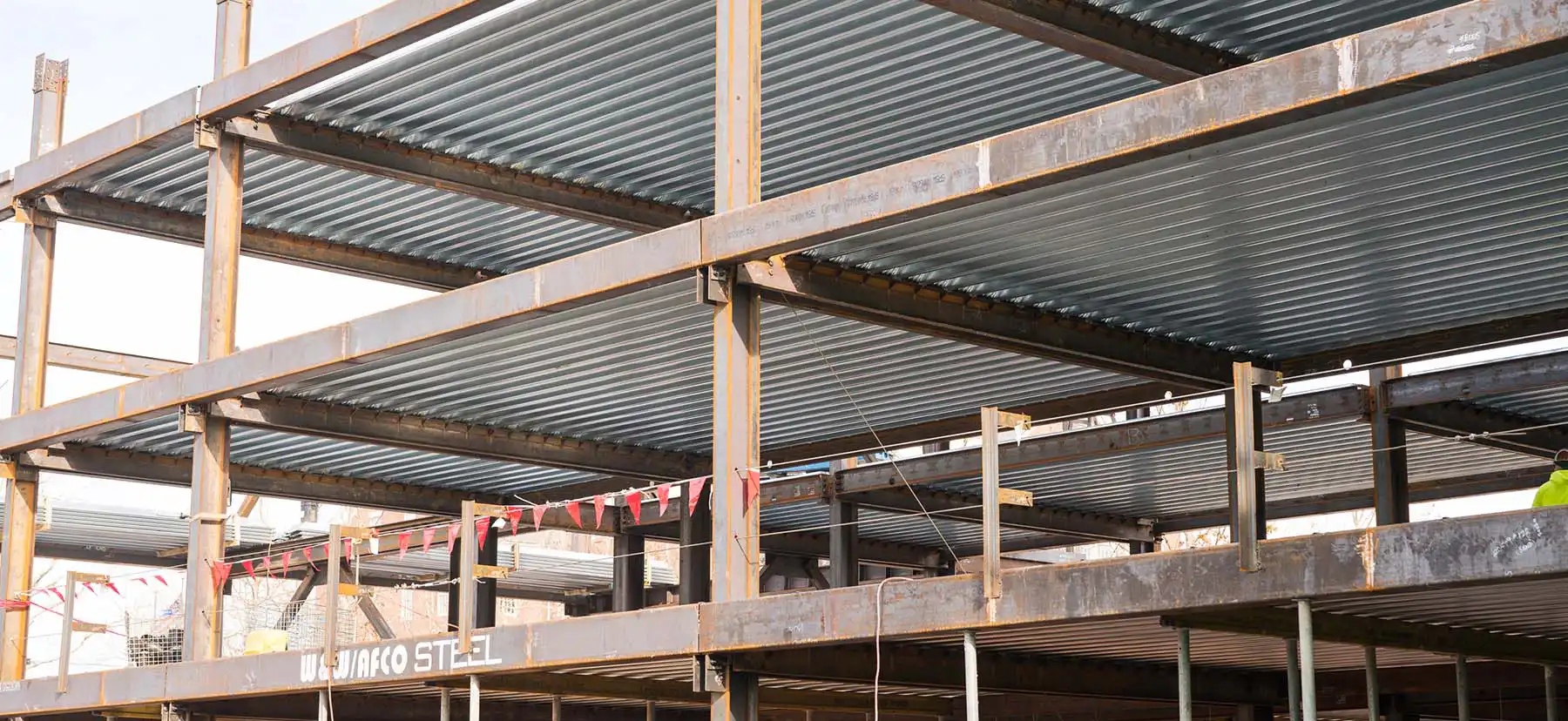

The panels consist of a steel frame and 6.0 Deep-Dek profiles. The frame is made up of two parallel beams using “upset” steel channels with ledger angles fixed to their webs.

Photo courtesy of GSB, Inc. Architects & Planners

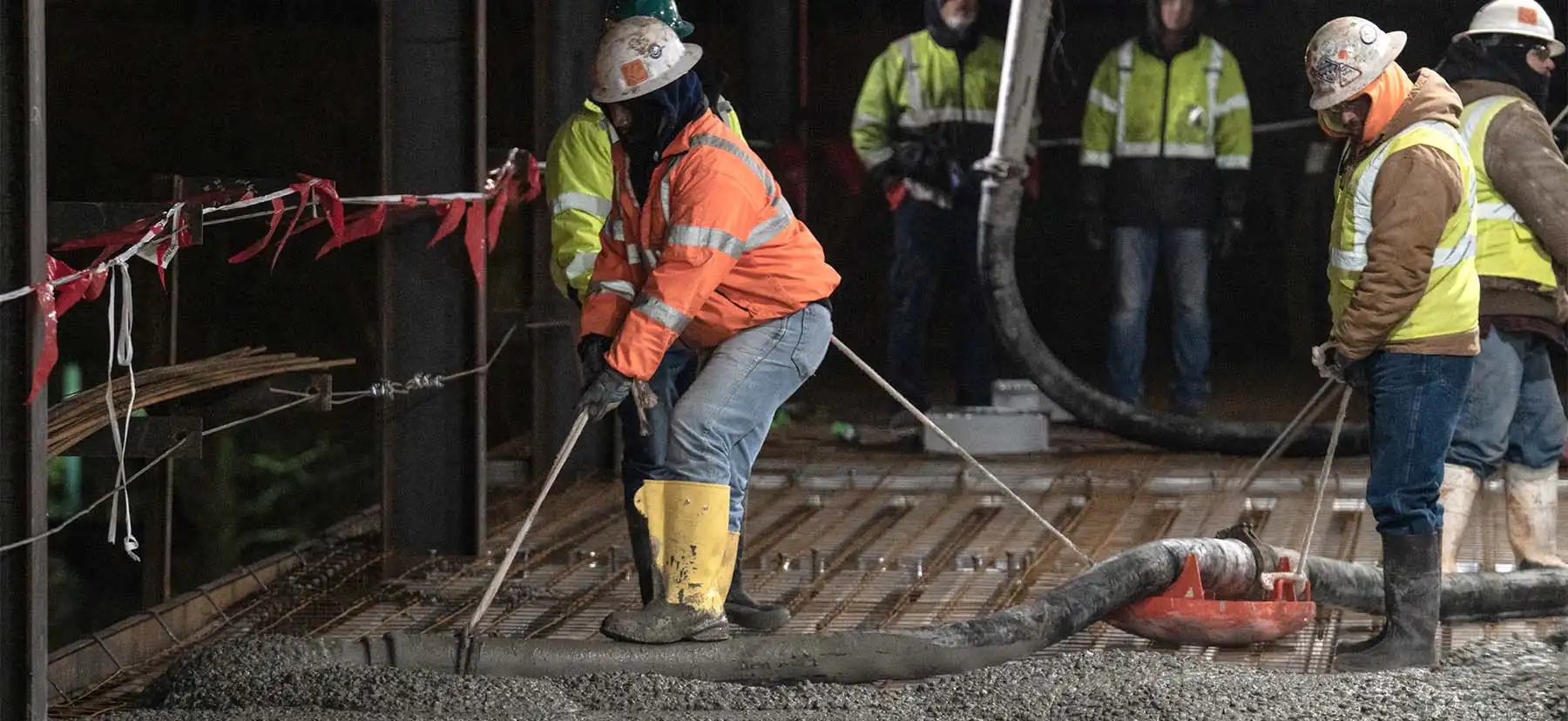

After the Deep-Dek panels are placed, slab reinforcing steel, if required by design, is placed over the deck before it’s topped with concrete using traditional methods and equipment.

Photo courtesy of GSB, Inc. Architects & Planners

PROJECT LOCATION: Oklahoma City, OK

The Ellison Hotel in Oklahoma City, Oklahoma, is more than a hospitality project. It’s a community project. In its 75,000 square feet is community space for showcasing local artists, hosting forums on race and social issues, and a library of local literature. The eclectic mix of uses required an equally eclectic combination of steel building systems, including standard joists, standard composite deck, deep-ribbed composite floor deck, dovetail composite floor deck, and steel roof deck.
