Deep-Dek^® Composite Floor Deck

Our longest spanning composite floor deck for multi-story projects

Create impressive clear spans, shallow floors, and dramatic looks

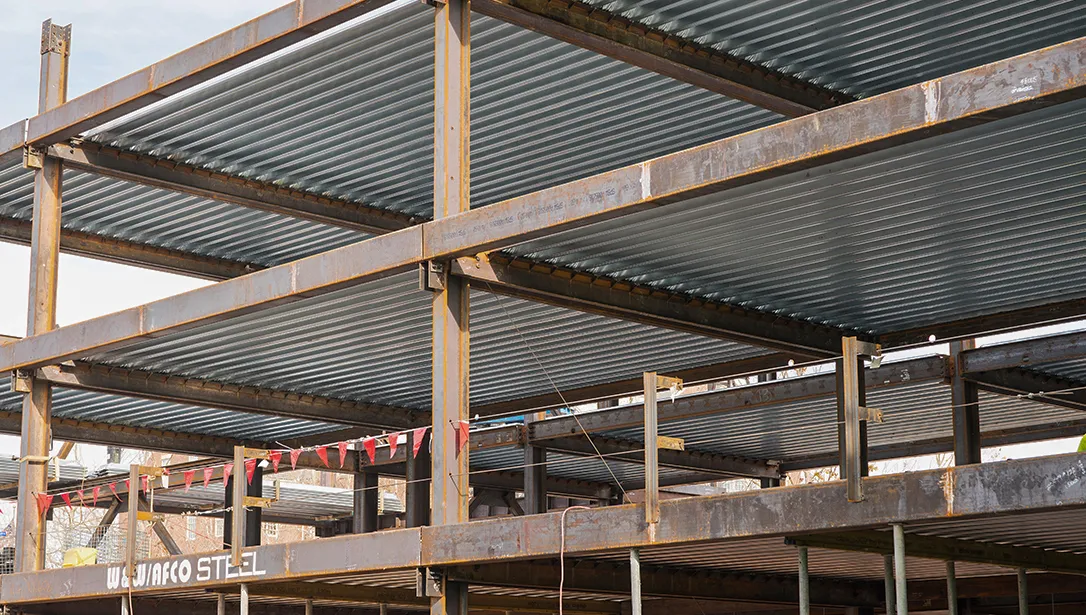

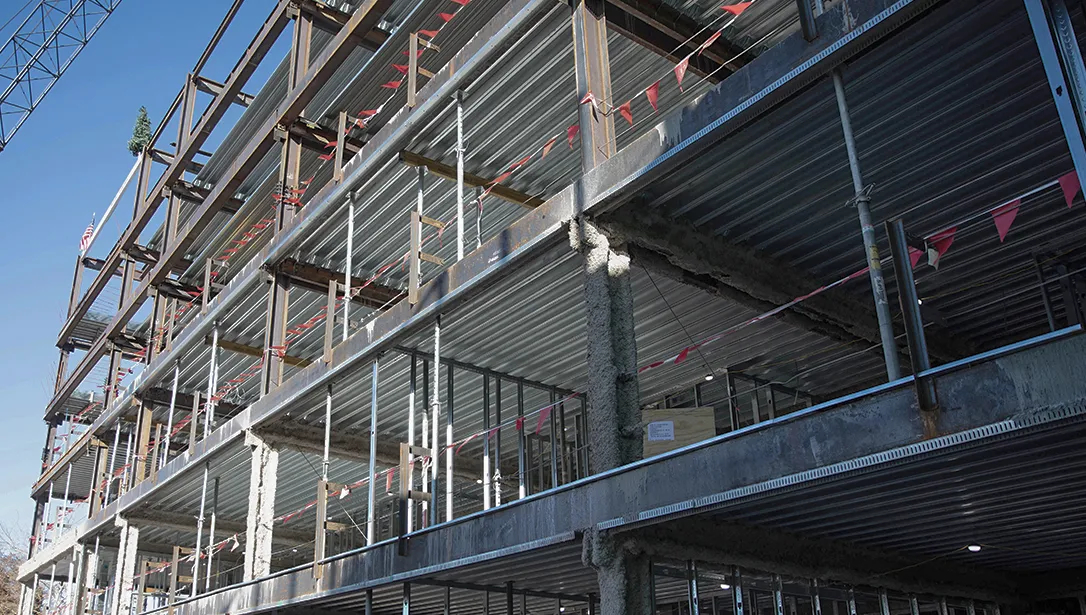

Our longest-spanning composite floor solution capable of reaching 36 feet with slabs as shallow as 7 inches, Deep-Dek® Composite steel floor deck makes wide open interior spaces possible for steel construction. The deep-ribbed steel deck profile creates a dramatic aesthetic while providing tensile strength to the composite slab. Deep-Dek® Composite features patented side-lap connections to achieve its composite bond with light- or regular-weight concrete toppings.

Deep-Dek® Composite deck is available in three profile depths, in both standard and cellular configurations. Deep-Dek® Cellular Composite deck is available with acoustical treatments with NRC ratings up to 1.00.

Contact a Specialist

View PDF

New Millennium Long-span composite brochure cover

Deep-Dek^® Composite

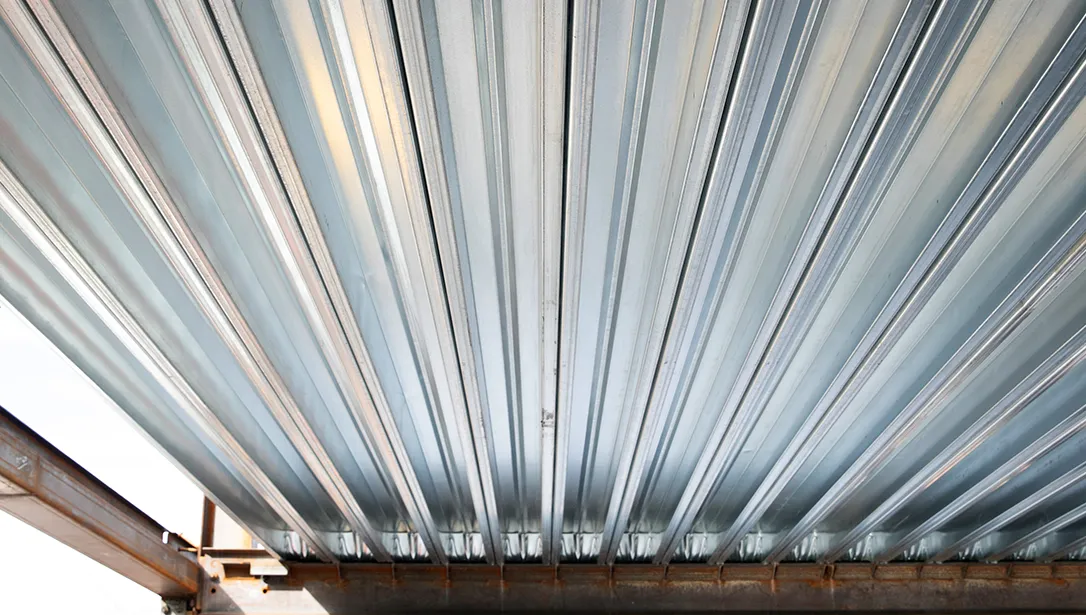

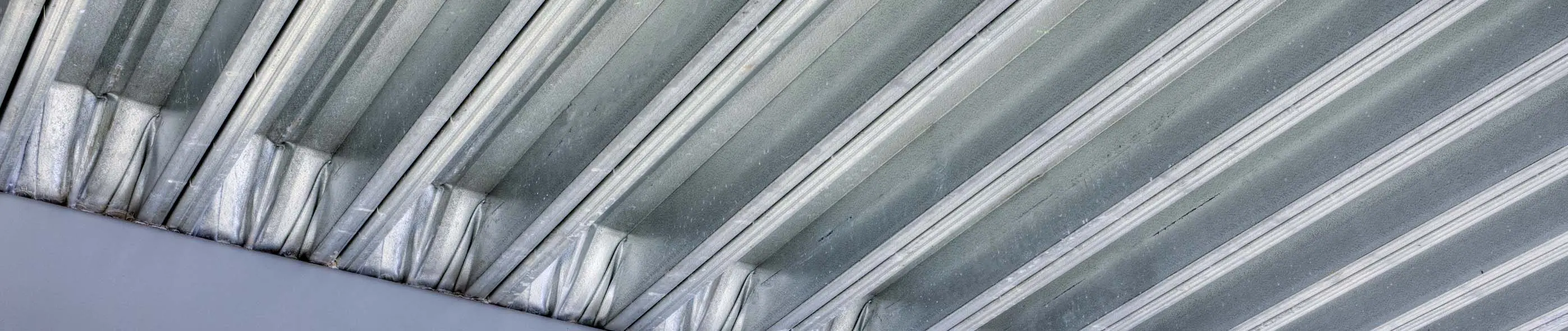

Create expansive clear spans with the dramatic aesthetics of Deep-Dek® Composite. Available in three profile depths, Deep-Dek® Composite deck is fabricated as a double hat width assembly, creating a 24-inch coverage unit. The unique deep-ribbed profile enables the deck’s long-span capabilities and provides its signature deep-fluted aesthetic.

View Technical Details

4.5" Composite Deep-Dek® (4.5CD)

6” Composite Deep-Dek® (6CD)

7.5” Composite Deep-Dek® (7.5CD)

Use in combination with any support method
Meets serviceability demands for fire, vibration and sound control, and MEP integration, etc.
Fast, safe, and cost-effective installation with optional panelized methods

Deep-Dek^® Cellular Composite

Deep-Dek® Cellular Composite deck is fabricated as a double hat width assembly with an integrated liner panel welded in place, creating a 24-inch coverage unit. The integrated liner panels convert the deep-fluted appearance of Deep-Dek® to a smooth aesthetic with subtle shadow lines. Available with or without acoustical options. Deep-Dek® Cellular Composite Acoustical provides an NRC value up to 1.00.

View Technical Details

4.5” Composite Deep-Dek® Cellular (4.5CDC)

4.5” Composite Deep-Dek® Cellular Acoustical (4.5CDCA)

6” Composite Deep-Dek® Cellular (6CDC)

6” Composite Deep-Dek® Cellular Acoustical (6CDCA)

7.5” Composite Deep-Dek® Cellular (7.5CDC)

7.5” Composite Deep-Dek® Acoustical (7.5DCA)

Use in combination with any support method
Meets serviceability demands for fire, vibration and sound control, and MEP integration, etc.
Fast, safe, and cost-effective installation with optional panelized methods
High acoustical performance options for STC and IIC between occupied spaces or NRC within the space
